เครื่องพันฟิล์มพาเลท C-ONE

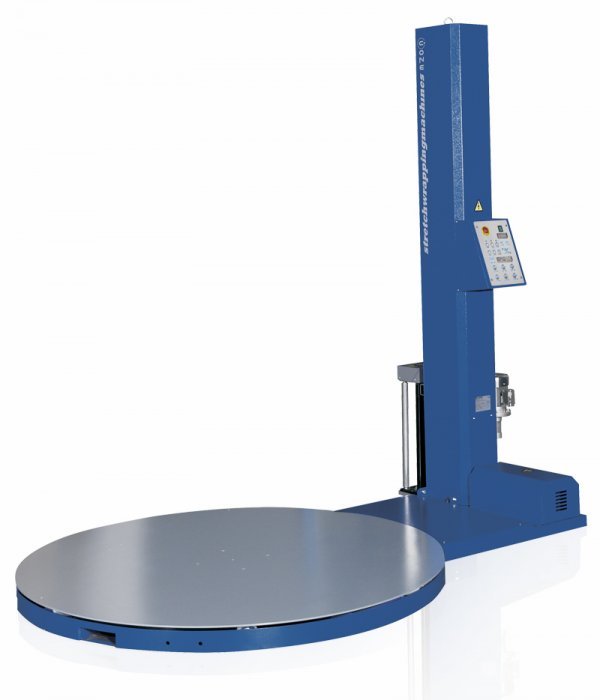

รุ่น Cresco

• Electronic printed circuit board for the management of the cycle
• Frequency controller for turntable speed adjustment (from 3 to 12 RpM)
• Frequency controller for carriage speed adjustment (speed going up and speed going down can be set differently)
• Loading plate ø 1500 mm
• Maximum wrapping height: 2200 mm
• Maximum size of the pallet: 800x1200 mm
• Maximum loading weight: 1200 kg
• Electromagnetic brake for film stretching
• Photocell for pallet height detection
• Safety stop at the base of the carriage
• Stop at 0 position
• Power board IP54
• 4 digits display
• 2 access keys (including lock mode)
• Adjustable parameters by the control panel: cycle selection, bottom turns, top turns, rotation speed, carriage speed going up, carriage speed going down, film tension.
• Many parameters available at upper password level
• Reinforcing operation
• 3 working cycles: ascent/descent; topsheet; only ascent
• 3 programs can be saved by the customer
• “Playback” special cycle
• 2 working ways: semimanual, semiautomatic.
• Acoustic warning at the cycle beginning and stop
• Autodiagnostic
• Powder coating
• Braked turntable at the end of the cycle
• 2 years warranty

เครื่องพันฟิล์มพาเลท C-ONE

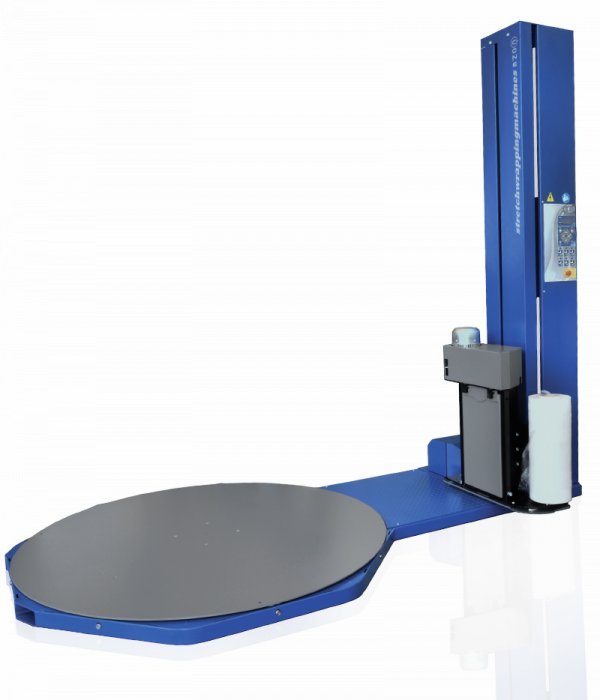

รุ่น BASE

• Electronic printed circuit board for the management of the cycle
• Frequency controller for carriage speed adjustment
• Frequency controller for turntable speed adjustment
• Loading plate ø 1500 mm
• Maximum height of pallet: 2200 mm
• Maximum size of the pallet: 800x1200 mm
• Maximum loading weight: 1200 kg
• Electromagnetic brake for the stretching of the film
• Photocell for pallet height detection
• Safety stop at the base of the carriage
• Stop at 0 position
• Power board IP54
• 3 password levels (including lock password)
• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle
• Parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height
• 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack
• Storage of 32 end user programs
• 3 working ways: semimanual, semiautomatic, fixed height
• Strenghtening operation
• Acoustic warning at the cycle start and stop
• Autodiagnostic
• Wrapped pallet counter
• Powder coating
• Braked turntable at the end of the cycle
• 2 years warranty

เครื่องพันฟิล์มพาเลท C-ONE

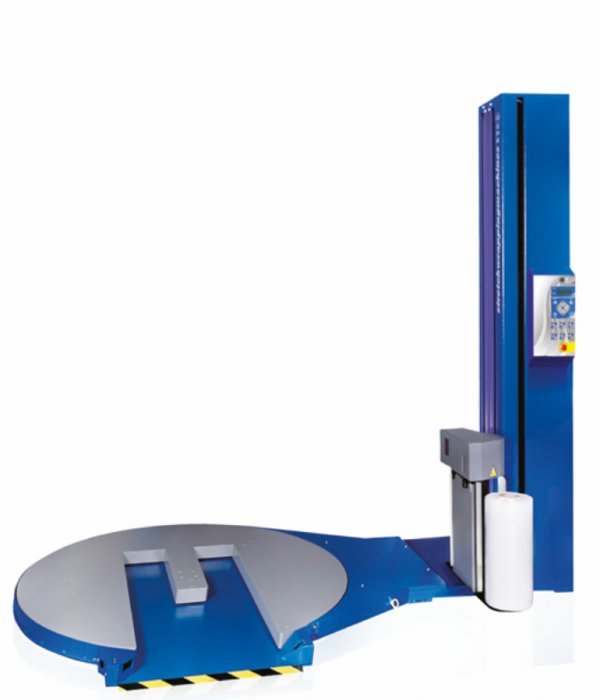

รุ่น BIFORIS

• Electronic printed circuit board for the management of the cycle
• Frequency controller for carriage speed adjustment
• Frequency controller for arm rotation speed adjustment
• Maximum height of pallet: 2400 mm
• Max size of the pallet: 1200x1000 mm
• Power pre-stretch carriage
• Photocell to detect the pallet height
• Safety stop loop at the base of the mast
• Stop at 0 position
• Power board IP54
• 3 password levels (including lock password)
• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed,
• carriage descent speed, film tension, starting wrapping height
• 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack
• Storage of 32 end user programs
• 3 working ways: semimanual, semiautomatic, fixed height
• Strenghtening operation
• Acoustic warning at the cycle beginning and stop
• Autodiagnostic
• Wrapped pallet counter
• Receiver for infrared/radio remote control
• Powder coating
• Braked arm at the end of the cycle

เครื่องพันฟิล์มพาเลท C-ONE

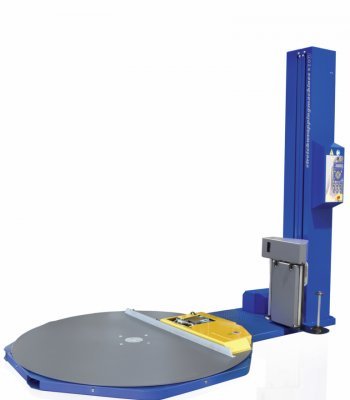

รุ่น Super Plus

• Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing
• Air device to blow up the film tail
• Power pre-stretch carriage
• Electronic printed circuit board for the management of the cycle
• Frequency controller for carriage speed adjustment
• Frequency controller for turntable speed adjustement
• Loading plate ø 1650 mm
• Maximum height of pallet: 2200 mm
• Maximum size of the pallet: 800x1200 mm
• Maximum loading weight: 2000 kg
• Photocell for pallet height detection
• Safety stop at the base of the carriage
• Stop at 0 position
• Power board IP54
• 3 password levels (including lock password)
• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage
• descent speed, film tension, starting wrapping height
• 3 working cycles: ascent/descent; topsheet; layers
• Storage of 32 end user programs
• 3 working ways: semimanual, semiautomatic, fixed height

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Receiver for infrared/radio remote control

• Powder coating

• Braked turntable at the end of the cycle

เครื่องพันฟิล์มพาเลท C-ONE

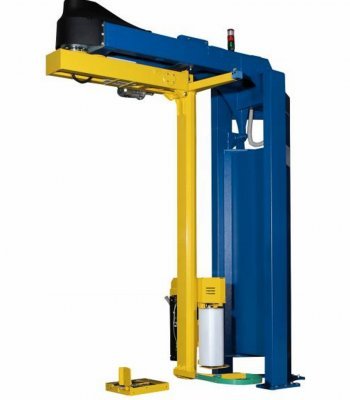

รุ่น Vertex SP

• Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing

• Air device to blow up the film tail

• Electronic printed circuit board for the management of the cycle

• Frequency controller for carriage speed adjustment

• Frequency controller for arm rotation speed adjustment

• Maximum height of pallet: 2500 mm

• Max size of the pallet: 1200x1200 mm

• Power pre-stretch carriage

• Photocell to detect the pallet height

• Safety stop loop at the base of the mast

• Stop at 0 position

• Power board IP54

• 3 password levels (including lock password)

• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage
• descent speed, film tension, starting wrapping height

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 32 end user programs

• 3 working ways: semimanual, semiautomatic, fixed height

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Receiver for infrared/radio remote control

• Powder coating

• Braked arm at the end of the cycle

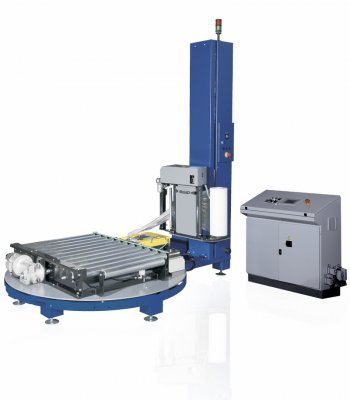

เครื่องพันฟิลิมพาเลท C-ONE

รุ่น Extrema

• The automatic cycle includes the loading of the pallet, the film hooking, the pallet wrapping, the film cold cutting, the hot sealing of the cut edge far from the product and the
• unloading of the pallet

• Air device for the blow of the edge of the film cut by the pliers

• Roller conveyor on the turntable

• SIEMENS S7 1200 - 1500 PLC

• Power pre-stretch carriage

• Electronic printed circuit board for the management of the cycle

• Frequency controller for carriage speed adjustment

• Frequency controller for turntable speed adjustement

• Loading plate ø 1800 mm

• Maximum height of pallet: 2100 mm

• Maximum size of the pallet: 800x1200 mm

• Maximum loading weight: 1700 kg

• Power board IP54

• Photocell for pallet height detection

• Safety stop at the base of the carriage

• Stop at 0 position

• 3 password levels (including lock password)

• Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage
• descent speed, film tension, starting wrapping height

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 32 end user programs

• 4 working ways: semimanual, semiautomatic, fixed height, automatic

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Powder coating

• Braked turntable at the end of the cycle

เครื่องพันฟิล์มพาเลท C-ONE

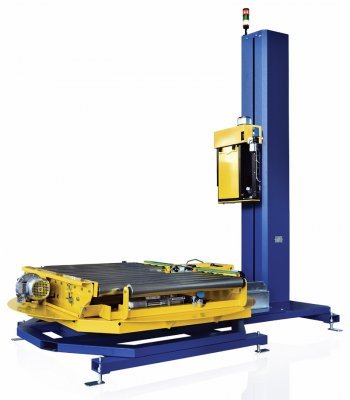

รุ่น Extrema Plus

• The automatic cycle includes the loading of the pallet, the film hooking, the pallet wrapping, the film cold cutting, the hot sealing of the cut edge far from the product and the
• unloading of the pallet

• Air device for the blow of the edge of the film cut by the pliers

• Roller conveyor on the turntable

• Power pre-stretch carriage

• Siemens PLC S7 1200-1500

• Operator panel Siemens TP 177 micro

• Frequency controller for carriage speed adjustment

• Frequency controller for turntable speed adjustement

• Loading plate ø1800 mm

• Maximum height of pallet: 2200 mm

• Maximum size of the pallet: 800x1200 mm

• Maximum loading weight: 1700 kg

• Power board IP54

• Photocell for pallet height detection

• Safety stop at the base of the carriage

• Stop at 0 position

• Lock password (parameters values can be modified only entering a password)

• Adjustable parameters by the control panel: cycle selection, bottom laps, top laps,topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed,
• film tension

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 10 end user programs

• 4 working ways: semimanual, semiautomatic, fixed height; automatic

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Powder coating

• Braked turntable at the end of the cycle

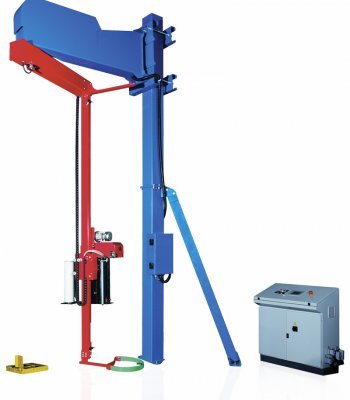

เครื่องพันฟิล์มพาเลท C-ONE

รุ่น EVOLVO 18

• Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing

• Air device to blow up the film tail

• PLC Siemens S7 1200-1500

• Operator panel Siemens TP 177 micro

• Frequency controller for carriage speed adjustment

• Frequency controller for arm rotation speed adjustment

• Maximum height of pallet: 2400 mm (less the conveyor height)

• Max size of the pallet: 1200x1000 mm

• Power pre-stretch carriage

• Photocell to detect the pallet height

• Safety stop loop at the base of the mast

• Stop at 0 position

• Power board IP54

• Lock password (parameters values can be modified only entering a password)

• Adjustable parameters by the control panel: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed,
• film tension

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 10 end user programs

• 4 working ways: semimanual, semiautomatic, fixed height; automatic

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Powder coating

• Braked arm at the end of the cycle

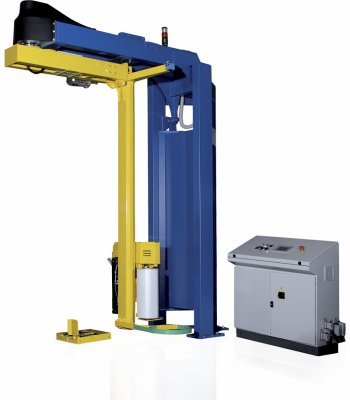

เครื่องพันฟิล์มพาเลท C-ONE

รุ่น VERTEX P18

• Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing

• Air device to blow up the film tail

• PLC Siemens S7 1200-1500

• Operator panel Siemens TP 177 micro

• Frequency controller for carriage speed adjustment

• Frequency controller for arm rotation speed adjustment

• Maximum height of pallet: 2400 mm (less the conveyor height)

• Max size of the pallet: 1200x1200 mm

• Power pre-stretch carriage

• Photocell to detect the pallet height

• Safety stop loop at the base of the mast

• Stop at 0 position

• Power board IP54

• Lock password (parameters values can be modified only entering a password)

• Adjustable parameters by the control panel: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed,
• film tension

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 10 end user programs

• 4 working ways: semimanual, semiautomatic, fixed height; automatic

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Powder coating

• Braked arm at the end of the cycle

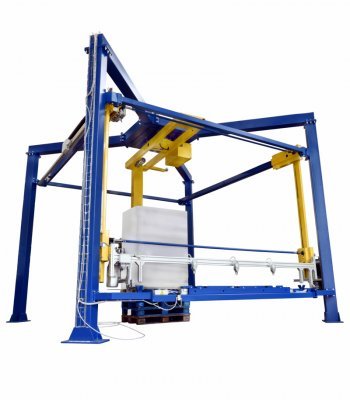

เครื่องพันฟิล์มพาเลท C-ONE

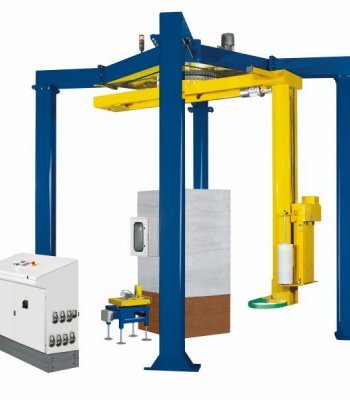

รุ่น VERTEX X25

• Automatic cycle for film hooking, pallet wrapping, film cold cutting and film hot sealing

• Air device to blow up the film tail

• 3 or 4 supporting legs

• PLC Siemens S7 1500

• Operator panel Siemens KTP 600

• Frequency controller for carriage speed adjustment

• Frequency controller for arm rotation speed adjustment

• Maximum height of pallet: 2400 mm (less the conveyor height)

• Max size of the pallet: 1200x1200 mm

• Power pre-stretch carriage

• Photocell to detect the pallet height

• Safety stop loop at the base of the mast

• Stop at 0 position

• Power board IP54

• Lock password (parameters values can be modified only entering a password)

• Adjustable parameters by the control panel: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed,
• film tension

• 3 working cycles: ascent/descent; topsheet; layers

• Storage of 10 end user programs

• 4 working ways: semimanual, semiautomatic, fixed height; automatic

• Strenghtening operation

• Acoustic warning at the cycle beginning and stop

• Autodiagnostic

• Wrapped pallet counter

• Powder coating

• Braked arm at the end of the cycle
